Alpine Meadow+ (Ontario Only)
Alpine Meadow+ (Ontario Only)
7+mm IA Pre-Vegetated System
A biodiverse green roof with enhanced water retention to
Key features
A pre-vegetated system that supports biodiversity and manages stormwater
- Up 7+ mm initial abstraction (IA) and includes all the benefits of Alpine Meadow
- Hydro Blanket greatly increases stormwater management capability
- Ideal when both biodiversity & stormwater management are needed
- Mats grown in Ontario
- Pre-vegetated mat-based system with pollinator-friendly native plants
- Biodiverse green roof as defined by Toronto Green Standard (TGS)
- Native plants meet LEED SS Credit: Protect or Restore Habitat
Properties
| Product Code | Product Name | Thickness (mm) | Dry Weight (kg/m2) | Saturated Weight (kg/m2) | Water Retention (l/m2) |
|---|---|---|---|---|---|
| NL719 | Meadow Blanket | 20.00 | 19.70 | 37.00 | 17.30 |
| NL630 | Growing Medium | 150.00 | 105.00 | 204.00 | 99.00 |
| NL501 | NM Hydro Blanket | 25.80 | 3.90 | 28.80 | 24.90 |
| NL400 | Filter Fabric | 0.55 | 0.10 | 0.40 | 0.30 |
| NL300 | Drainage Mat | 17.00 | 0.34 | 0.34 | 0.00 |
| NL120 | Root Barrier | 0.50 | 0.46 | 0.46 | 0.00 |
| Total | 213.85 | 129.50 | 271.00 | 141.50 |
| Product Name | Product Name | Thickness (inch) | Dry Weight (psf) | Saturated Weight (psf) | Water Retention (inch) |
|---|---|---|---|---|---|
| NL719 | Meadow Blanket | 0.79 | 4.03 | 7.58 | 0.68 |
| NL630 | Growing Medium | 5.91 | 21.51 | 41.80 | 3.90 |
| NL501 | NM Hydro Blanket | 1.02 | 0.80 | 5.90 | 0.98 |
| NL400 | Filter Fabric | 0.02 | 0.02 | 0.08 | 0.01 |
| NL300 | Drainage Mat | 0.67 | 0.07 | 0.07 | 0.00 |
| NL120 | Root Barrier | 0.02 | 0.09 | 0.09 | 0.00 |
| Total | 8.42 | 26.53 | 55.52 | 5.57 |
TGS v4 & LEED Compliant
TGS v4 & LEED Compliant
- Meets TGS WQ 1.3 On-Site Green Infrastructure as biodiverse green roof
- Uses only natives listed in Design Guidelines for Biodiverse Green Roofs
- Use of native plants meets LEED SS Credit: Protect or Restore Habitat
Water Balance & Irrigation Reuse
Water Balance & Irrigation Reuse
- 7+mm initial abstraction for water balance calculation as per Toronto Water
- Additional retention can reduce storage volume required in water balance
- Supports irrigation water reuse onsite with drip irrigation system
Low Maintenance
Low Maintenance
- Ontario native plants that are specially selected to thrive on rooftops
- Pre-grown natives are heat & drought tolerant with low nutrient needs
- Perennials come back year after year, also propagate by seeds

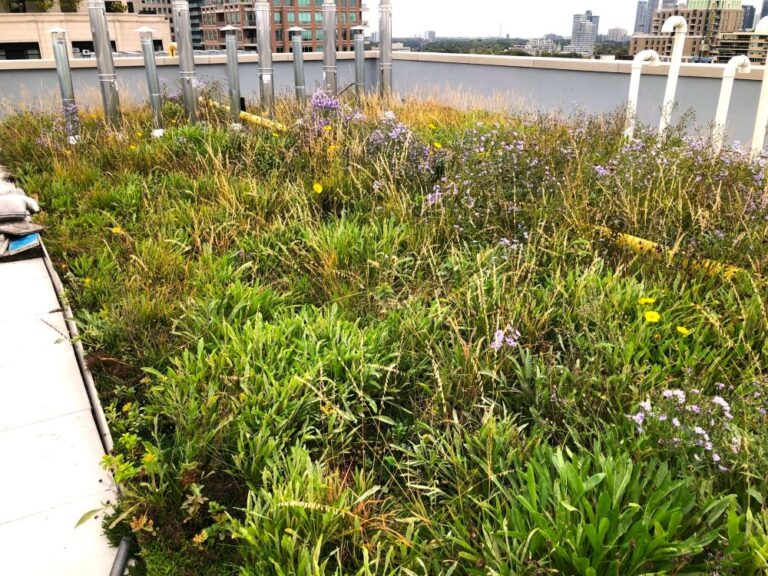

Pollinators’ Haven
Native hardy plants provide nourishing pollen and nectar, and nesting habitats.
Plants are pre-grown as a “blanket” with over 85% vegetation coverage upon installation.
Certified to sustain 200 km/h winds.
Meets Toronto Green Standard V4
WQ 1.1
1. Water Balance
WQ 1.3
2. Intensive Green Roof
3. Biodiverse Green Roof
